Customer Challenge:
We understand our customer’s need for a dedicated hydraulic press to separate guide elements in their molds. This press must meet stringent precision and technical requirements, including a press force of 120 tons, a customized worktable size, and an intuitive push-button control system. We are committed to designing and manufacturing a system that perfectly meets these needs, ensuring optimal performance and long-term reliability.

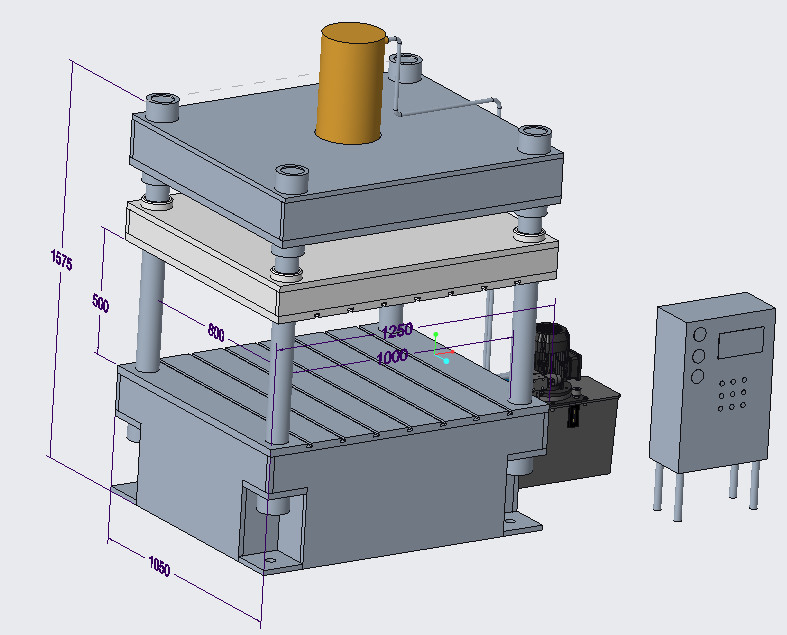

Specifications: Our Code: NM120T-PRL Nominal Force: 1200 (kN) Slide Stroke: 500 (mm) Maximum Opening height: 800 (mm) Table size: 1000x800 mm Down Speed of empty range: 100 (mm/s) Working Speed: 5-10 (mm/s) Return Speed: (90 mm/s) Motor power: 15 (kW) Lower Cylinder Stroke: 400 (mm)
|
|
Applications:
Computer optimized design, 3-beam, 4-column structure, simple but with high performance price ratio.Cartridge valve integral unit equipped for hydraulic control system, reliable, durable, and less hydraulic shock, with shorter connection pipeline and fewer releases points.Independent electrical control, reliable, audio-visual, and convenient for maintenance.Centralized button control system, with adjustment, hand, and semi-auto operation modes at operator's choice.Fixed stroke forming process or fixed pressure forming process selected through control panel, with pressure hold and time delay functions.The operating force, no-load traveling and low-speed movement and travel range can be adjusted subject to technological requirements. The frame is entirely welded with steel plates and treated to relieve stress by tempering.The covering shell helps protect safety during work and machine operation.
Machine Structure:
|
|
Configurations:
Item | Name | Picture | Remark |
1 | Cylinder |
| Polished and chromed with high rigidity treatment |
2 | Covering shell |
| The covering shell helps protect safety during work and machine operation |
3 | Hydraulic station |
| Hydraulic system with design to ensure system performance, including filtration system and pipes |
4 | Servo Motor |
| Servo motor model 150T-FRL-PA control can improve the working speedand save energy |
5 | Electrical cabinet and controls |
| Touch screen control can simplify the working procedures |
Optional Configurations | |||
Item | Name | Picture | Remark |
1 | Light curtain |
| Machine will stop once the light curtain is triggered |
2 | Shuttle table |
| Exchange table can largely improve the efficiency if worker wants to change the mold frequently |
3 | Water cooler |
| Lower down the oil temperature especially for long time working situation |
Our Capacity:
Warranty period is 12 months after receiving machine; any quick-wear part is available for free during guarantee period under proper operation, customers only need to pay for the freight of the replaced new parts.
Installation and training service is optional for customers, any client can ask for this service from NEWMAIN.
